Blow point Tester

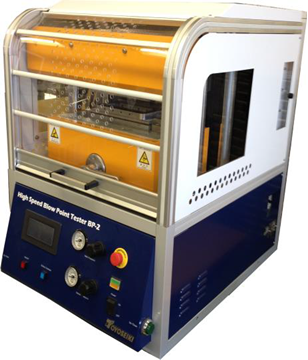

The High Speed Blow Point Tester BP-2 is a precision instrument designed to determine the “blow point” in vulcanized rubber products. The “blow point” is the exact moment at which the voids within the material disappear. This value is essential for calculating the equivalent degree of vulcanization and for establishing the optimal vulcanization time for large rubber products.

Application

This tester is ideal for use on large rubber products such as tires, belts, and anti-vibration rubbers. It helps manage the production process by ensuring a uniform degree of vulcanization between the inside and the surface of the product.

Application Principle

The device measures the temperature increase at four points in the center of the samples, using integrated temperature sensors. The “blow point” value is calculated by entering the data of the vulcanized samples (after identifying the location of the voids) into the data processing unit.

Standard: JIS K 6300-4

Additional Information

Automatic Operation: The entire process can be operated automatically from the data processing unit.
Versatility: The instrument can measure the blow point value using three different mold sizes.
Simplified Calculation: The blow point value is calculated by cutting the vulcanized samples to identify the position of voids and then entering the data into the data processing unit. The software simplifies this process.

Technical Specifications:

Model: BP-2
Heating Plate Dimensions: 200 x 350 x 40 mm (W x D x H)
Heating plate material: duralumin, heated with an electric heater.
Mold clamping force : 49 kN or greater, at a pressure of 0.6 MPa.
Temperature Distribution: 190∘C±1∘C (Mold Surface)
Suitable temperature range for the tests: from room temperature plus 30∘C up to 200∘C
Dimensions: 566 x 765 x 800 mm (L x P x A)
Weight: about 270 kg
Electrical Power Supply: Three-phase, AC200V, 50/60Hz, 4.5 kVA

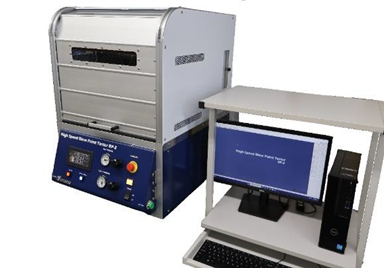

Standard Accessories: Data processing unit (PC not included), sample heat maintenance box for 30 mm molds, A4 color printer

Optional Accessories

Pneumatic sample cutter (Model: BP-CUT)
Hand-lever sample cutter (Model: CUT)
